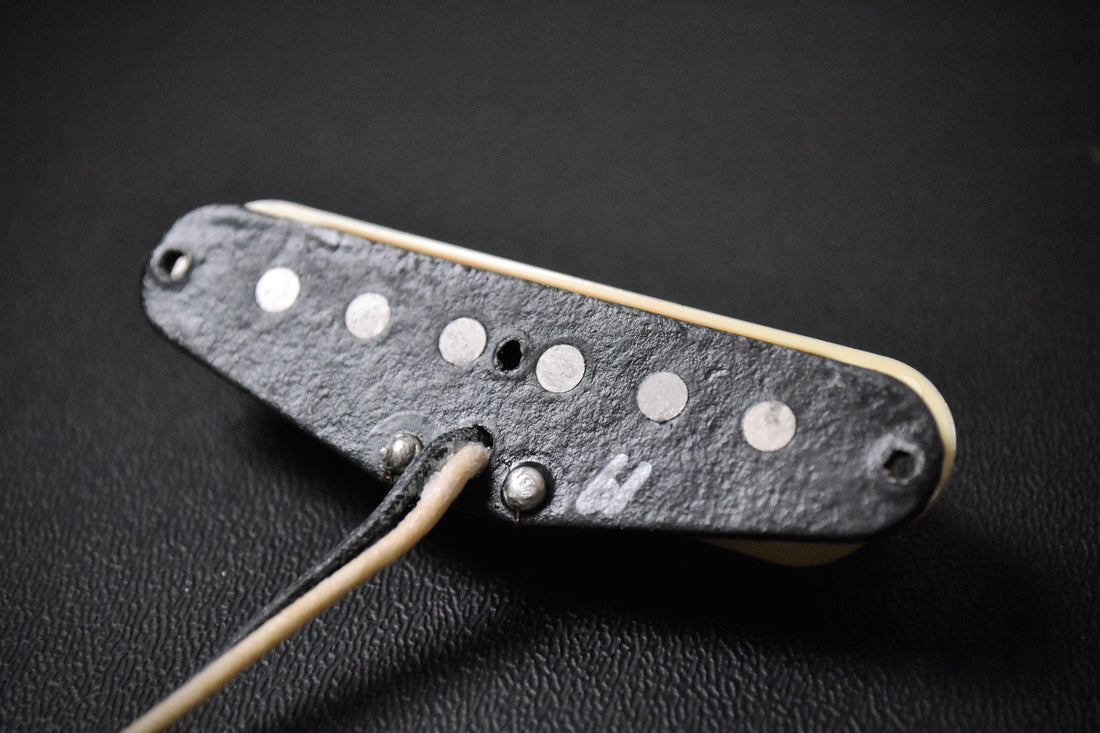

How to Change Pickups in Your Electric Guitar: A Complete Guide

Why Change Your Guitar Pickups?

Your guitar's pickups are the heart of your tone. Whether you're chasing a warmer vintage sound, more aggressive output for high-gain playing, or simply replacing worn-out pickups, swapping them out is one of the most effective upgrades you can make to your instrument.

What You'll Need

Before you begin, gather these essential tools:

• Soldering iron and solder
• Wire cutters and strippers
• Screwdrivers (Phillips and flathead)
• Multimeter (optional but recommended)
• Masking tape and marker
• New pickups with wiring diagram

Step-by-Step Guide

1. Prepare Your Workspace

Work on a clean, flat surface with good lighting. Loosen your strings completely—you don't need to remove them entirely, just create enough slack to access the pickguard or control cavity.

2. Document the Existing Wiring

This is crucial. Before disconnecting anything, take clear photos of your current wiring from multiple angles. Label each wire with masking tape if needed. This documentation will be invaluable if you need to reference the original setup.

3. Remove the Old Pickups

Remove the pickguard screws (for Strat-style guitars) or pickup mounting rings (for Les Paul-style guitars). Carefully lift the assembly and identify which wires connect to the pickup selector switch, volume and tone pots, and output jack.

Heat each solder joint with your soldering iron and gently pull the wire free. Work methodically and avoid applying excessive heat, which can damage components.

4. Install Your New Pickups

Follow the wiring diagram provided with your new pickups. Most manufacturers include detailed schematics showing exactly where each wire should connect. Common wire colours include:

• Black or bare wire: ground
• White or red: hot signal
• Green or bare: ground to casing

Solder each connection cleanly, ensuring good contact without cold joints or excess solder that could create shorts.

5. Test Before Reassembly

Before screwing everything back together, plug in your guitar and test each pickup position. Check that all controls function properly and listen for any unwanted noise, hum, or dead spots. If you have a multimeter, verify continuity and check for shorts.

6. Final Assembly and Setup

Once everything tests correctly, secure the pickguard or mounting rings, tune up, and adjust your pickup height. Start with the manufacturer's recommended distances and fine-tune to taste—closer to the strings yields more output but can cause magnetic pull on the strings.

Common Pitfalls to Avoid

Reversed polarity: If your middle pickup sounds thin when combined with the neck or bridge, you may have the polarity reversed. Check your wiring diagram carefully.

Ground loops: Excessive hum often indicates a grounding issue. Ensure all ground wires are properly connected to the back of a pot or dedicated ground point.

Wrong pickup height: Pickups set too high can cause tuning issues and uneven response; too low and you'll lose output and clarity.

When to Seek Professional Help

If you're uncomfortable with soldering or your guitar has active pickups requiring battery compartment modifications, consider having a professional handle the installation. A proper setup ensures optimal performance and protects your investment.

Final Thoughts

Changing your guitar pickups is a rewarding upgrade that can dramatically transform your tone. Take your time, follow the wiring diagrams carefully, and don't hesitate to reach out to the pickup manufacturer's support team if you have questions. With patience and attention to detail, you'll be enjoying your new sound in no time.
